Walrus Audio Canvas Power HP

Rated 5.00 out of 5 based on 5 customer ratings

(1 customer review)

Price range: € 239 through € 259

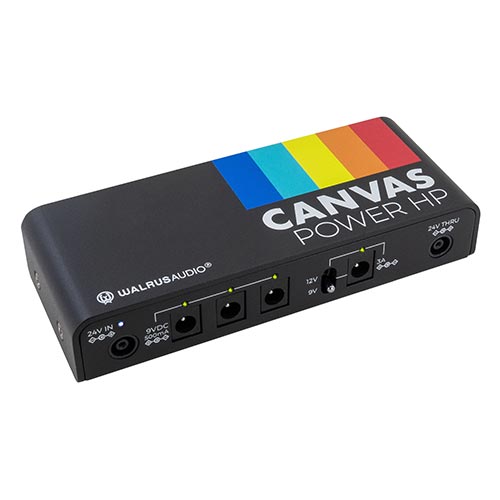

Walrus Audio Canvas Power HP is a modular, linkable, power supply ecosystem with isolated outputs and an ultra compact design.

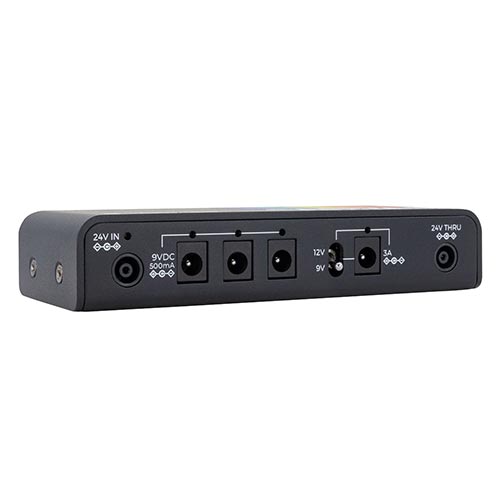

This power supply with an ultra slim profile even fits under flat Pedaltrain boards (NANO / METRO). The Power HP has 4 outputs. Three outputs have a maximum of 500 milliamps and one of the outputs is switchable between 9 and 12 volts. The maximum amount of current of this output is 3.000 milliamps.

This power supply needs an adapter (included) to provide your pedals with current. This power supply is available either with an external power supply (for mains connection) or as a “Link” version (no external power supply) to expand an existing Canvas Power setup. You can link any combination of Canvas Power models to expand your system and grow with your pedals.

Included are barrel cables with a very low profile tip for fitting into tight spaces (ideal for small pedalboards). And universal mounting brackets are also included. Please note: below you can choose the version with external power supply or the version with the 24 Volt Link Cable.

Walrus Audio Canvas Power HP demo video

Euverify Information

Manufacturer: Walrus Audio

Power Supply Type

Clear

SKU: N/A Category: Power Supply for Guitar Pedals

Description

Type: Power Supply
Outputs: 4 isolated outputs
Output voltage:
3 x 9V DC, max 500mA per output
1 x 9/12V DC, max 3.000mA per output
Total Current: 4.500 mA
AC output: No
Details:
All outputs are isolated
Suitable for analog and digital pedals
Made in: USA

Additional information

Weight	0,5 kg
Dimensions	13,3 × 5,4 × 2,54 cm
Category	Stock
Brand	Walrus Audio
Type	Power Supply
Outputs	4 outputs
Current	DC
Voltage	9 Volt, 12 Volt
Power Supply Type	24v Link Cable, Power Supply

Brand

Walrus Audio

Walrus Audio Walrus Audio, based in Oklahoma, is the go-to brand for guitarists who think beyond standard sounds. Their effects pedals aren’t just technically impressive—they’re also visually striking; each design is a work of art in its own right. Whether you’re looking for ambient reverb, glitchy delays, or thick fuzz, Walrus delivers pedals with character and ease of use. Well-known models such as the Slö Multi Texture Reverb, ARP-87 Delay, and Julianna Chorus demonstrate that it perfectly combines classic effects with modern features. Think stereo outputs, tap tempo, presets, and expression inputs. But more importantly, they just sound amazing. Creative sound art in pedal form The sound is always rich, spacious, and musical. Walrus Audio pedals are designed to spark your creativity, whether you’re playing live, in the studio, or experimenting at home. Thanks to their rugged construction and high-quality components, you can count on them to last a long time, even with heavy use.

1 review for Walrus Audio Canvas Power HP

Rated 5 out of 5

Kornelis (verified owner) – March 8, 2026

Great product. Gives the right power to my QC mini and the Morningstar MC8 Pro. Supersilent and works flawless.
