FRIEDMAN BUFFER BAY CONECTION DIAGRAM STEREO CHAIN ALL IN FRONT

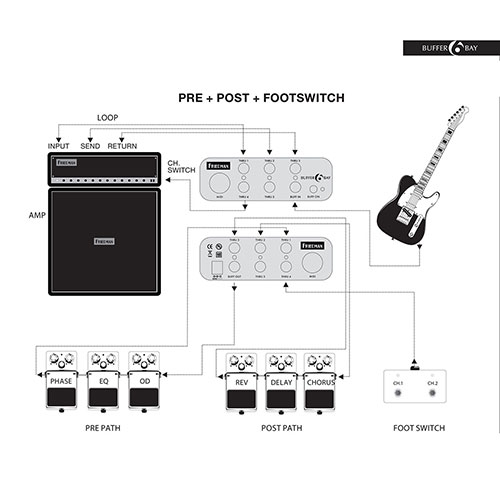

FRIEDMAN BUFFER BAY CONECTION DIAGRAM PRE POST FOOTSWITCH

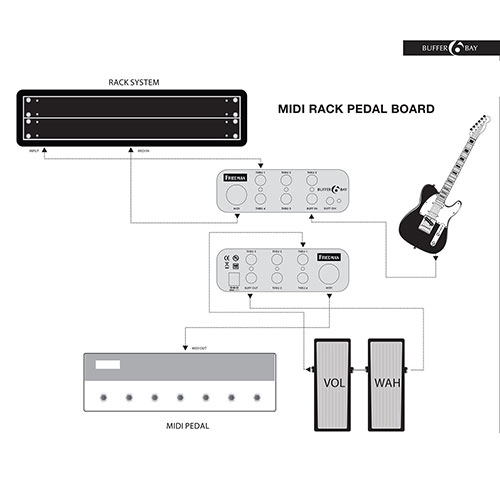

FRIEDMAN BUFFER BAY CONECTION DIAGRAM MIDI RACK

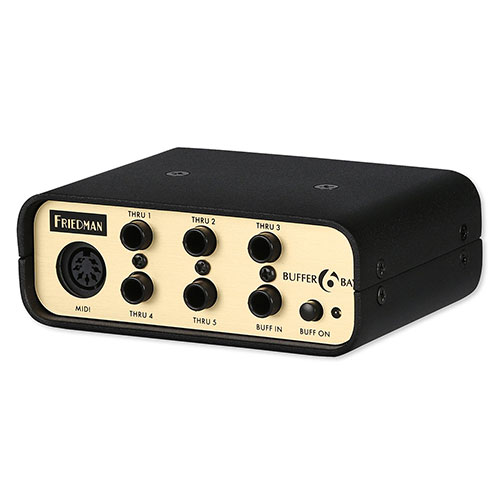

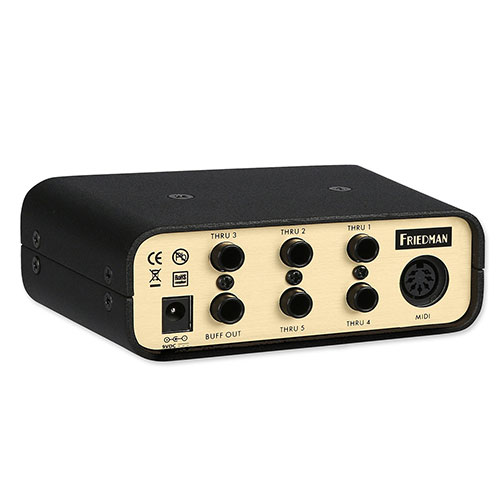

Friedman Buffer Bay

Name: Friedman Buffer Bay
SKU: 763815128276
Availability: PreOrder

€ 209

Delivery time around 13 days

Friedman Buffer Bay is an ultra transparent buffer and professional patch bay for your guitar and bass effects pedals. The Buffer Bay is a simple solution and an innovative tool which can be easily implemented to ANY pedal board.

The Buffer Bay accomplishes two basic things. First – it is an ultra transparent, natural and musical sounding buffer, which can be turned on or off using the provided switch. The buffer solves the fundamental problem of loading loss caused by interconnected cables and some pedals. This “loss” siphons your guitar of fidelity, tone and volume level. This problem occurs even if all the pedals used are true bypass and the more pedals and longer the cable runs, the greater the losses.

The Buffer Bay 6circuitry, when engaged, sounds identical to your guitar straight into the amp! You can access the buffer using the buffers IN connector on one side of the Buffer Bay and Buffer Out on the other side.

Second- the Buffer Bay is a patch bay with the following benefits:
• Cleans up all of the connections on your pedal board.
• Allows for tighter pedal placement on the board (you no longer need to access
the jacks on certain pedals).
• Lets you have all cables from your board in the same location allowing neater chord
runs on stage.
• Your pedal chain in permanently connected making setup and takedown quick
and painless.
• Saves the life of the jacks on your pedals by not plugging in cables ever y time you play.
• Easily configure your input or output in hard to reach places.

The Buffer Bay includes 5 identical 1/4″ TRS (tip, ring, sleeve) in and out connections and a Buffered TS (tip, sleeve) connection (can be turned ON/OFF via switch). It also provides a 7 pin MIDI thru connection. The Buffer Bay 6 can be used for a wide variety of connection schemes. Once the Buffer Bay is configured on your board, simply plug your guitar and amp in and you no longer have to fight with your first and last pedals. Using an extra patch cable you can easily go from using an amp with an effects loop to using one without.

Friedman Buffer Bay demo video

Available on backorder

SKU: 763815128276 Category: Buffer

Description

Effect: Buffer Patch Bay
Design: Analog
Mono/Stereo: 5 x Thru In, 5 x Thru Out, 1 x Buff In, 1 x Buff Out, 2 x Midi Thru
Switches: Buffer On/Off
Bypass Mode: True/Buffered Bypass
Power Supply: 9V DC, center negative
Power Consumption: N.A.
Works on batteries: No
Type of Battery: –
Format: Normal
Made in: USA

Additional information

Weight	0,3 kg
Dimensions	14 × 12,7 × 5,7 cm
Category	Stock
Brand	Friedman
Sort	Guitar, Bass
Type	Buffer
Routing	Mono In / Mono Out
