Cioks DC10

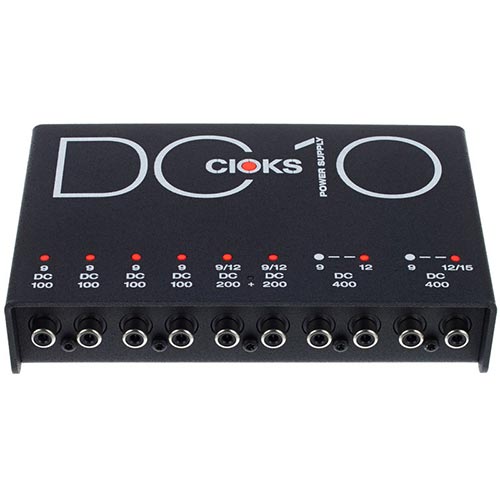

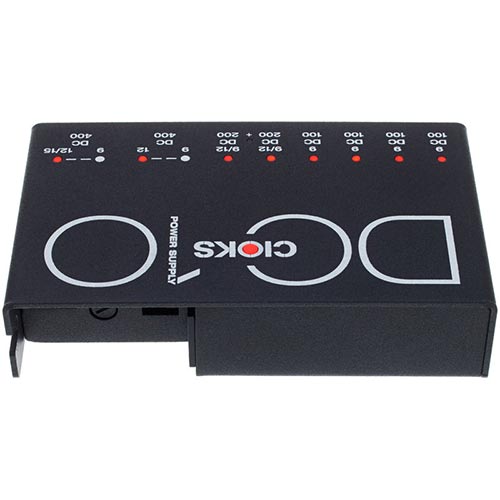

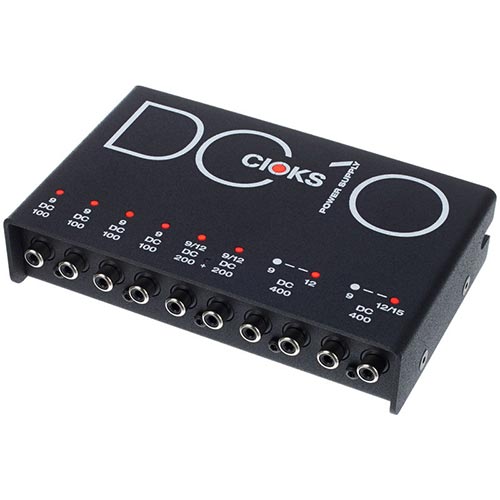

Cioks DC10 is a professional multi-output power supply for effect pedals. It has 10 regulated and well-filtered DC outlets configured in 8 isolated sections.

With a total of 1.600mA it’s a perfect solution for bigger rigs with pedals only using a DC power source. Its three powerful sections with 400mA each will power pedals with special requirements like Strymons, Eventides, TC Electronic Nova-series pedals or TC Helicon pedals, Moogerfoogers, Radial Tonebone pedals or others without the need of special cables.

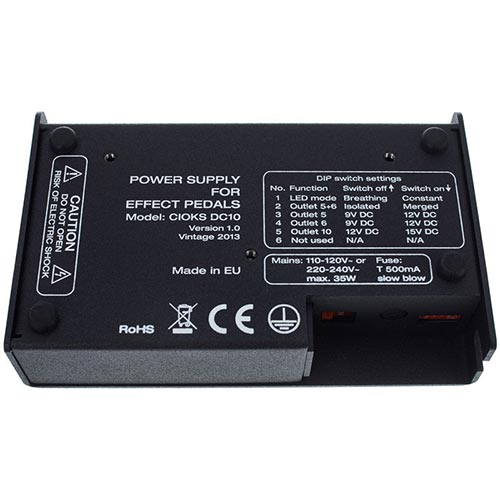

Selectable with a switch DC10 offers voltages 9, 12 and 15V, and combined with the included Stack Flex or Series adapter Flex also 18 and 24V. The first 4 isolated outlets offering 4x100mA are perfect for standard 9V low current pedals.

What’s in the box?

• CIOKS DC10 power supply
• Mains power cord
• 16 Flex cables:
  Type 1 – black with 5,5/2,1mm centre negative DC plug x8
  Type 2 – red with 5,5/2,1mm centre positive DC plug x1
  Type 4 – green with 5,5/2,5mm centre positive DC plug x2
  Type 5 – black with 3,5mm tip positive Jack plug x1
  Type 6 – black with 9V battery clip x1
  Split Flex type 1 – black, powers two pedals of a single outlet x1
  Stack Flex type 1 – white/black, adds voltages of two outlets x1
  Series Adapter Flex – white, adds voltages of two outlets x1
• Pedalboard mounting hardware: mounting bracket, screws, washers, stand-off and hex key
• Manual
• Product sheet (drill guide)
• Flex guide
