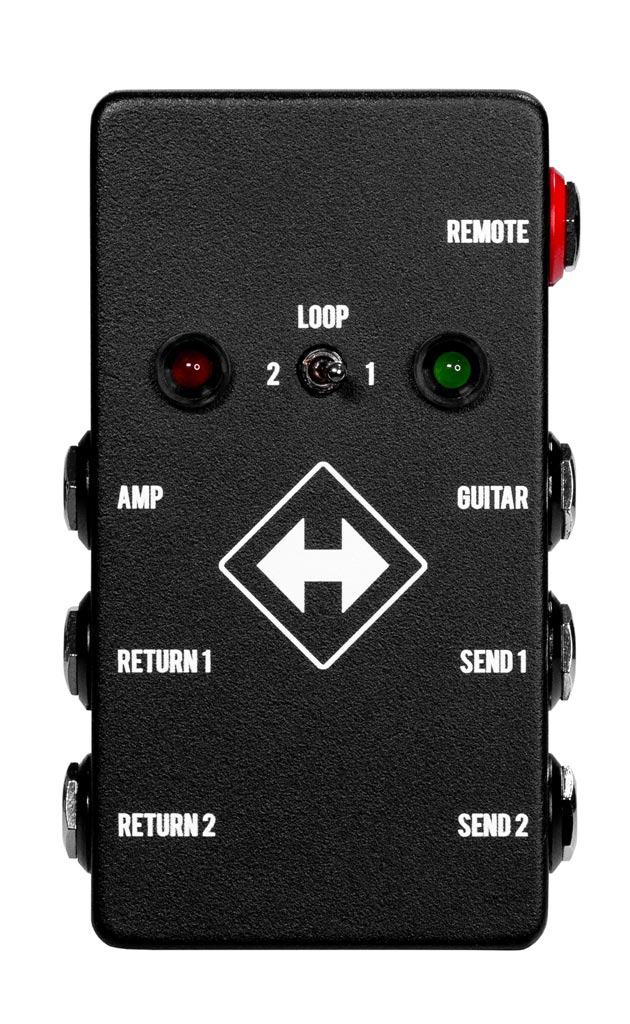

JHS Switchback

JHS Switchback is a small unassuming box with a massive feature set. It began its life as a device that we designed just for ourselves to test and compare pedals in the JHS workshop but we soon realized that it was extremely useful for everyone’s guitar rig on stage or in the studio.

The Switchback has one input, one output and two separate selectable effects loops (Send/Return), plus an A/B toggle that is controllable by our Red Remote switching system. The foot-switch is 100% true bypass, so when it’s off, it’s not affecting your signal in any way. Here are a few applications that are incredibly useful

1. An A/B True Bypass Looper
Place a pedal or chain of pedals in the first loop and place a different pedal or chain of pedals in the second loop. The toggle/red remote will allow you to quickly switch between those two loops.

2. A Simple True Bypass Looper
Place your pedal or chain of pedals that you want in the first loop. The toggle/Red Remote will now toggle between the loop with your effects and the clean bypass signal.

3. An A/B Box
Simply use Send 1 and Send 2 to go to two different amps or any other application where you need two switchable outputs, and don’t use the output.

4. An Amp Input Switcher
Use Send 1 to channel one and Send 2 to channel two. This allows you to “channel switch” on any amp with multiple inputs like old Marshalls and Fenders!

5. An Effects Loop A/B
Plug your amp’s effects loop Send into the input and the amps return into the output. Then toggle between the two loops of the Switchback as in example #1 above.

The Switchback could become an essential utility in your touring rig or studio, helping you solve many switching puzzles with your rig. So grab a Switchback and get to climbing!

JHS Switchback demo video
