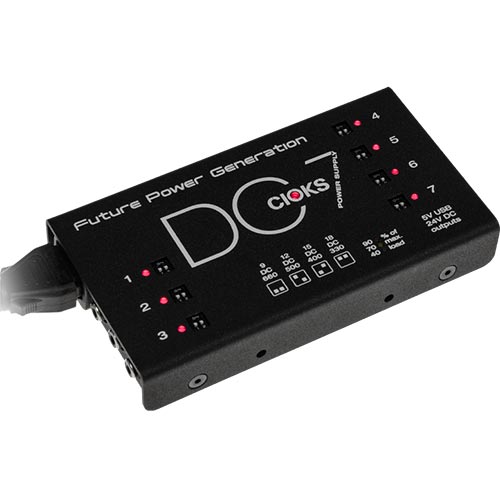

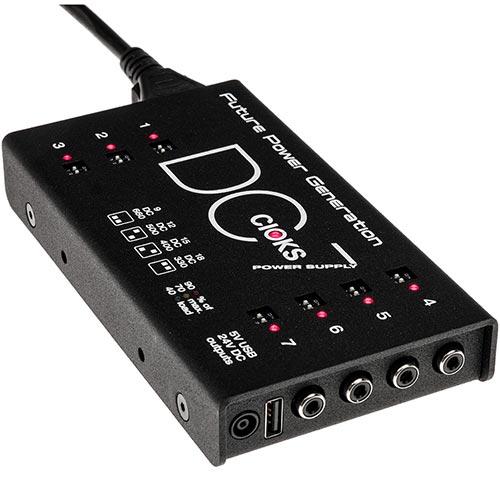

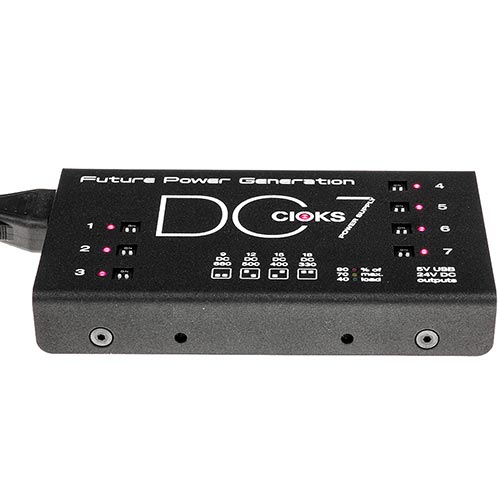

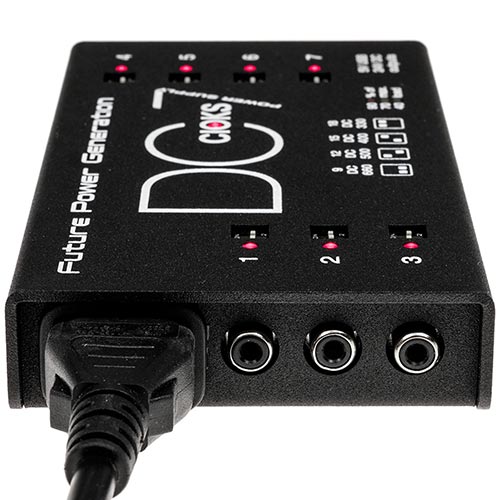

Cioks DC7 is one of the thinnest and most flexible power supply for powering effect pedals. The groundbreaking DC7 has a one-inch (25,4mm) profile and weighs 1.1 pound (500 grams) thanks to the pure 2-stage switch-mode technology inside.
The DC7 puts out a maximum of 48W from its 9 outlets and allows the user to connect multiple high-current effects such as devices from Effectrode and Eventide without noise of any kind. It features 7 isolated DC-outlets for effect pedals each with four selectable voltages.
Each of the outlets can put out 6W which corresponds to 660mA of current at 9V. Additionally the DC7 has also a 5V USB outlet and an auxiliary 24V outlet. The DC7 is expandable with CIOKS 4 and CIOKS 8 as well as with other compatible power supplies powered with 24V DC for even more isolated outlets and even more flexibility.
What’s in the box?
CIOKS DC7 power supply
Mains power cord
12 Flex cables:
Standard Flex type 1 – black with 5,5/2,1mm centre negative DC plug x7
Standard Flex type 2 – red with 5,5/2,1mm centre positive DC plug x1
Standard Flex type 4 – green with 5,5/2,5mm centre positive DC plug x1
Standard Flex type 5 – black with tip positive 3,5mm Jack plug x1
Split Flex type 1 – powers two pedals of a single outlet x1
3-way Daisy chain Flex type 1 – powers three pedals of a single outlet x1
