Your board only really works well when the power supply is right. The question of how many pedals you can run from one power supply may seem simple, but the right answer almost always depends on current draw, pedal type and the way you power your pedals.
If you only look at the number of outputs, you often miss exactly where hum, dropouts or digital crackling begin. A power supply is not a power strip with a random maximum. It is about voltage, polarity, available milliamps and whether the outputs are isolated or not. Especially when you combine analog drives with digital delays, reverbs or pitch pedals, that makes a big difference in practice.
How many pedals on one power supply depends on three things
The first factor is the total current draw of your pedals. Each pedal requires a certain amount of current, usually expressed in mA. A simple tuner or overdrive is often quite low, while a digital reverb, looper or multi-modulation pedal can require much more.
The second factor is the type of output on your power supply. With an isolated power supply, each output has its own circuit. This provides more stability and less chance of hum or ground loops. With a daisy chain, you share one output across several pedals. That can work perfectly well, but only if the connected pedals are electrically compatible.
The third factor is voltage. Most pedals run on 9V DC with center-negative polarity, but there are exceptions. Some pedals require 12V or 18V, and some draw extra current internally during startup. Connect those incorrectly and you do not have a minor inconvenience, but an immediate problem.
How do you calculate how many pedals fit on one power supply?
The basic idea is simple. Check the current draw in mA for each pedal and add up everything you want to place on one output or one daisy chain. Then compare that total with the maximum current that output can deliver.
Suppose you have three analog pedals: a tuner drawing 30 mA, an overdrive drawing 8 mA and a chorus drawing 20 mA. Together they require 58 mA. If your power supply delivers 100 mA on that output, you are technically fine. In practice, it is smart to leave some headroom so that peaks or tolerances do not cause problems.
If you have a digital delay drawing 250 mA, a reverb drawing 300 mA and a looper drawing 150 mA, you quickly reach 700 mA. In that case, a standard 100 mA output will not be enough, even if the plugs happen to fit. The pedal may function poorly, produce extra noise or fail to start up altogether.
A safe rule of thumb is not to run right up against the maximum. If an output delivers 300 mA, it is better to stay clearly below that in practice. Not because things will always go wrong, but because a live pedalboard needs to be reliable above all.
Do not only look at the mA on the label
Manufacturers usually provide a nominal value. That is useful, but not absolute. Some digital pedals briefly draw more current when switched on. Older or unusual designs can also be a little more sensitive in practice than the specification suggests. That is why calculation headroom is not a luxury, but simply sensible.
When does a daisy chain work?
A daisy chain is mainly useful for small analog pedals with low current draw. Think overdrive, distortion, fuzz, wah, simple compression or an analog chorus. If those pedals all use 9V DC center-negative power and together stay well within the mA capacity of the output, you can often run several from one output without hassle.
For a compact board, that can be a neat and affordable solution. Especially if you are not using demanding digital gear and your signal chain is otherwise quiet, you do not necessarily have to give every stompbox its own isolated output.
Still, it remains a trade-off. Some fuzzes and wah pedals are more sensitive to power and noise than you might expect on paper. Even an analog pedal can pick up hum when it shares a chain with another pedal that is internally less clean.
When is it better not to use one?
As soon as you start combining digital pedals, the chance of issues increases. Delay, reverb, IR loader, looper, pitch shifter and some modern modulation pedals are often better candidates for their own isolated output. Not only because of current draw, but also because digital circuits are more likely to put unwanted noise on the power line.
A daisy chain is also not recommended if you hear hum that disappears when you test the pedals separately. That is usually a clear sign that parts of your power setup are influencing each other. In that case, more isolation is often the real solution, not another patch cable or endlessly moving adapters around.
How many pedals on one power supply is normal in practice?
There is no universal number, but there are realistic scenarios. With a good isolated power supply with eight to ten outputs, you can often power eight to ten pedals, as long as voltage and current per output are correct. If you use current doubler or voltage options, that number may be slightly lower because one pedal may use two outputs.
On a single 9V output via a daisy chain, four to six small analog pedals can sometimes run perfectly well. But that is not a rule. Four simple pedals can be problem-free, while two specific pedals together may already cause hum. That is why the question of how many pedals fit on one power supply is less about counting and more about matching correctly.
A large board with twelve pedals therefore does not automatically require twelve separate adapters, but it usually does require a serious power supply with enough isolated outputs and sufficient current reserve. Especially if several digital pedals are involved.
Common mistakes with power supplies
The most common mistake is only looking at the number of connections. A power supply with many outputs may seem spacious, but if several outputs only deliver 100 mA, you can quickly run into problems with modern digital pedals.
The second mistake is ignoring voltage. A pedal that requires 18V will not work properly on 9V unless the manufacturer explicitly supports that. The other way around, applying 18V to a 9V pedal is often simply risky.
The third mistake is thinking that all hum comes from the wall outlet. Quite often, the problem is simply a shared, non-isolated power supply. You can blame the whole stage, but the cause may be sitting on your own board.
Another popular mistake is loading a power supply right up to its limit because the numbers technically add up. That can work, but it is rarely the most comfortable setup. A little headroom pays off in stability.
How to choose the right power supply for your board
Do not start with the power supply, start with your pedals. Make a list of all pedals currently on your board or coming soon, including voltage, polarity and mA draw. Also note whether each pedal is analog or digital. That will quickly show which pedals deserve their own output and which power supply is the best choice.
If your board mostly consists of drives, fuzz, compressor and a tuner, you can often get by with a less complex power supply. If you also have a digital delay, reverb and looper, it is better to choose enough isolated outputs and some extra current headroom right away. That prevents you from having to buy again later.
Think ahead as well. Many guitarists do not build a board once, but in stages. If you buy exactly what barely fits now, you may be puzzling with splitters and adapters again in three months. Choosing a little more capacity is often cheaper than improvising later.
The same applies to bass players, especially with more modern setups using preamps, synth-like effects or digital multi-utility pedals. These often draw more current than a classic board with only analog stompboxes.

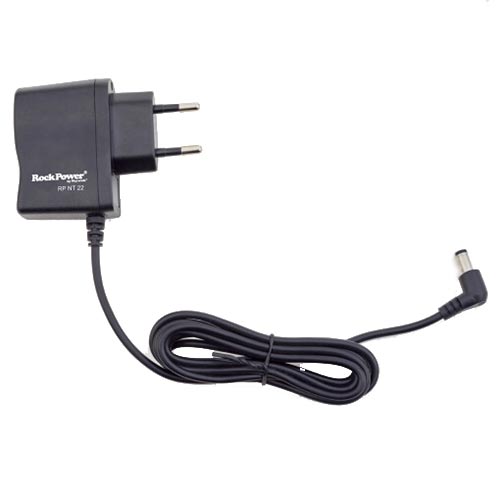

Recommended 9 volt adapters
Recommended 9V power supplies with five outputs
Recommended 9V power supplies with ten outputs
Recommended 9V power supplies with twelve or more outputs
If your favorite power supply is not listed here, check our overview page with power supplies.
A practical rule of thumb for your pedalboard
If you want a quick guideline, use this: small analog pedals can often share one output if the voltage and polarity are the same and the total current draw stays well below the limit. Digital pedals are preferably given their own isolated output. Pedals with a different voltage should always be treated separately.
If you are choosing between barely enough and more than enough, choose more than enough. That is not excessive, it is simply the safest route for a board that needs to be quiet, stable and stage-ready.
So if you want to know how many pedals can run from one power supply, you should actually ask a different question: which pedals do I want to use together without problems? Once that is clear, choosing the right power supply becomes much easier.
